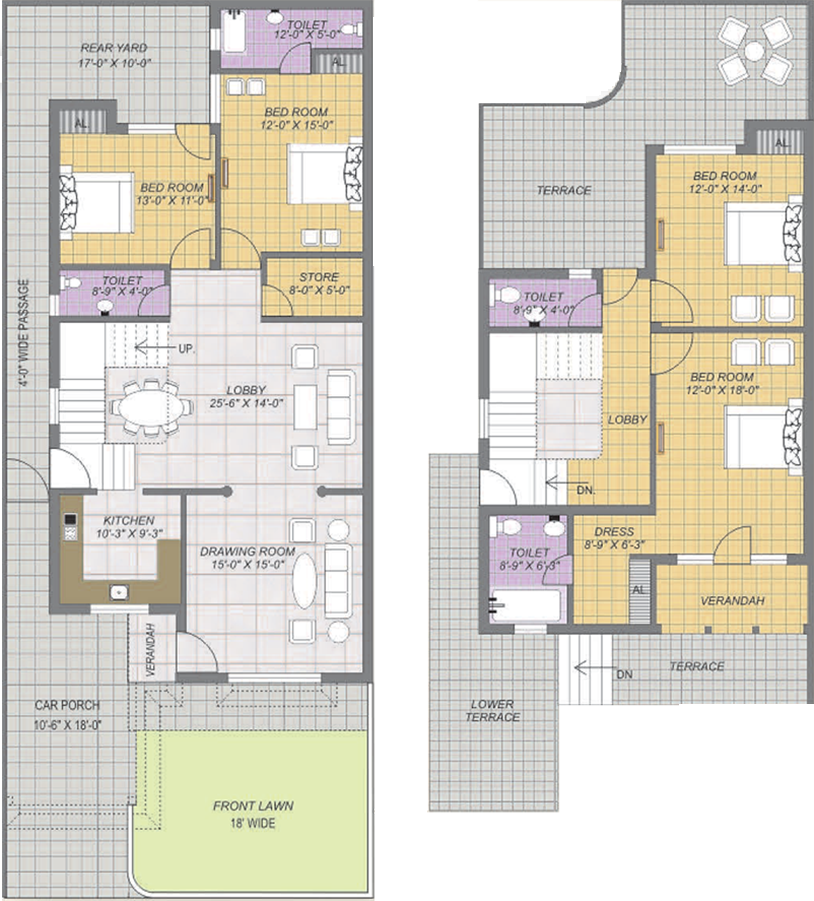

GROUND FLOOR PLAN-

COVERED AREA = 1711 SQ. FT.

FIRST FLOOR PLAN-

COVERED AREA = 991 SQ. FT.

TOTAL COVER AREA 294O (including mumty)

TOTAL PLOT AREA = 258 SQ. YD.

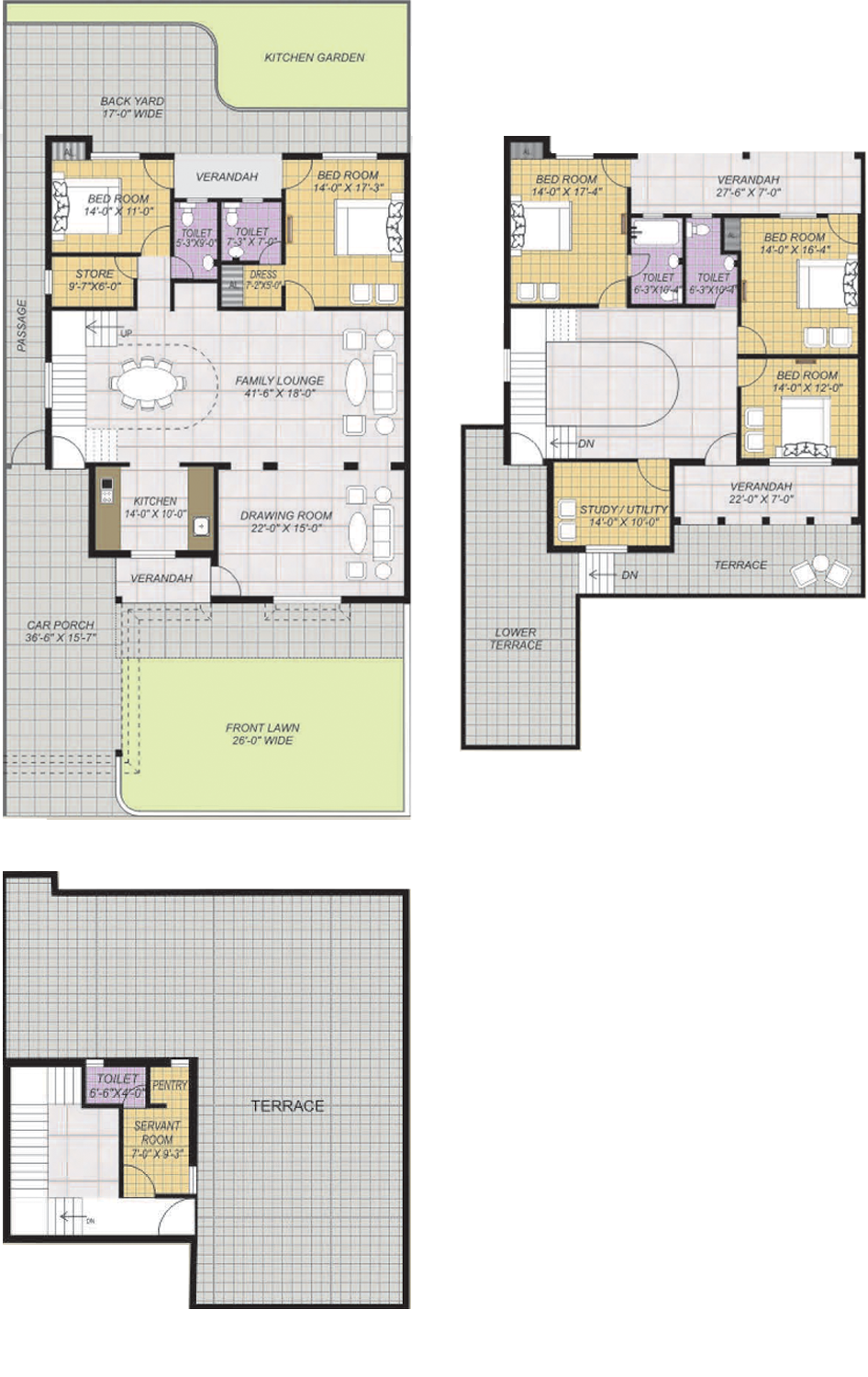

GROUND FLOOR PLAN-

COVERED AREA = 2852 SQ. FT.

FIRST FLOOR PLAN-

COVERED AREA = 1945 SQ. FT.

MUMTY (TERRACE) FLOOR PLAN

MUMTY COVERED AREA = 416 SQ. FT.

TOTAL COVER AREA 5215 SQ. FT.

TOTAL PLOT AREA = 500 SQ. YD.

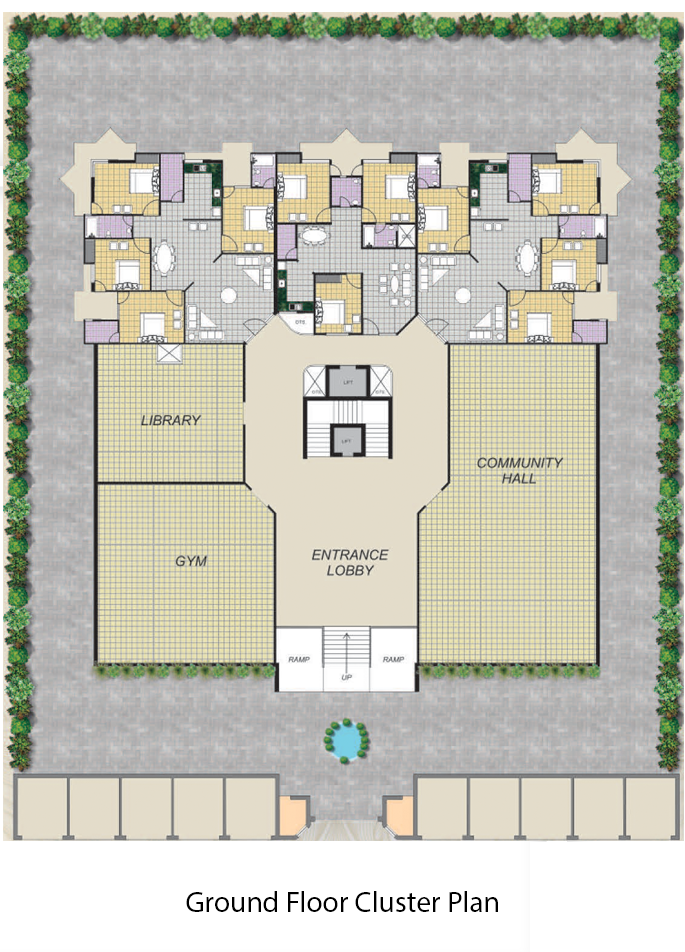

GROUND FLOOR ClUSTER PLAN-

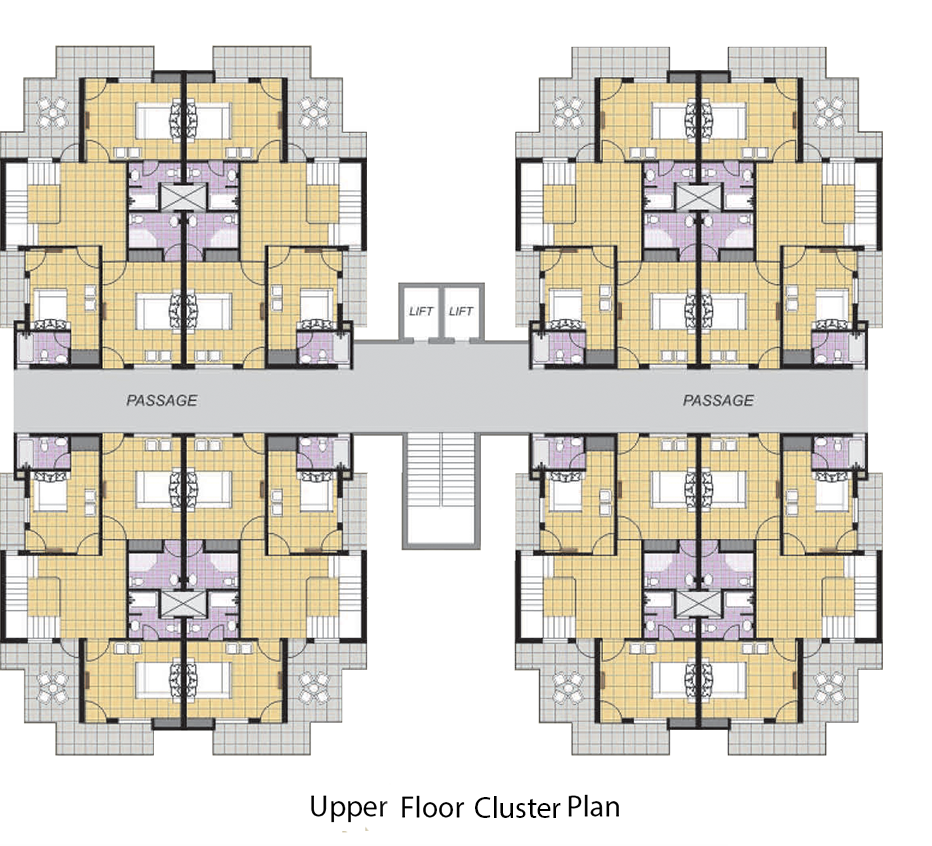

TYPICAL FLOOR ClUSTER PLAN-

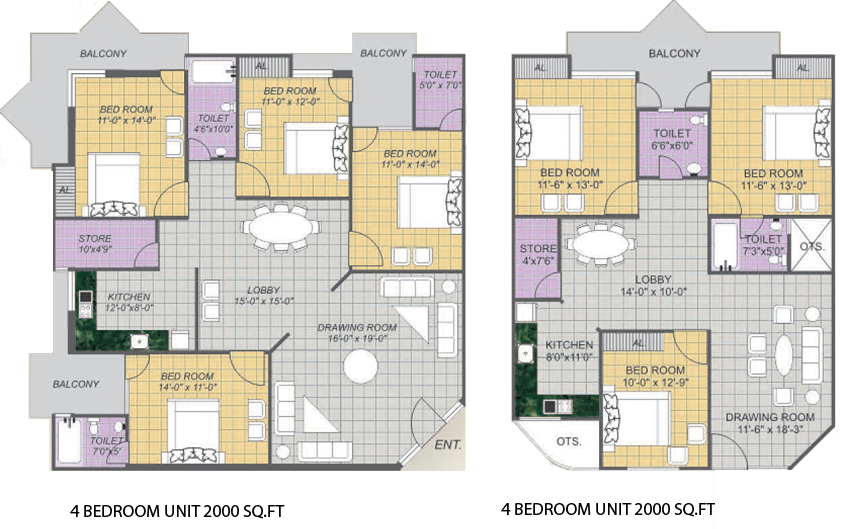

4 BEDROOM UNIT 2000 SQ.FT

4 BEDROOM UNIT 2000 SQ.FT
